Fiber laser annealing color: Purple

Stainless 304
JPT MOPA E M7 · 150mm · 60.00 W · Created at: 2026-03-05 · Submitted by: Nikolaus
More Purple 16 entries More Stainless 304 48 entries More values for JPT 42 entries
Power 40.00 %
Speed 850.00 mm/sec
Q-Pulse 8
Frequency 214.00 kHz
Back to search Download LightBurn file

Basics

Power 40.00 %
Out of focus 0.00 mm
Laser power 60.00 W
Speed 850.00 mm/sec
Frequency 214.00 kHz
Q-Pulse 8
Line interval 0.0020 mm
Scan angle 0.00°
Passes 1
Bidirectional Yes
Crosshatch No
White pre-engrave No

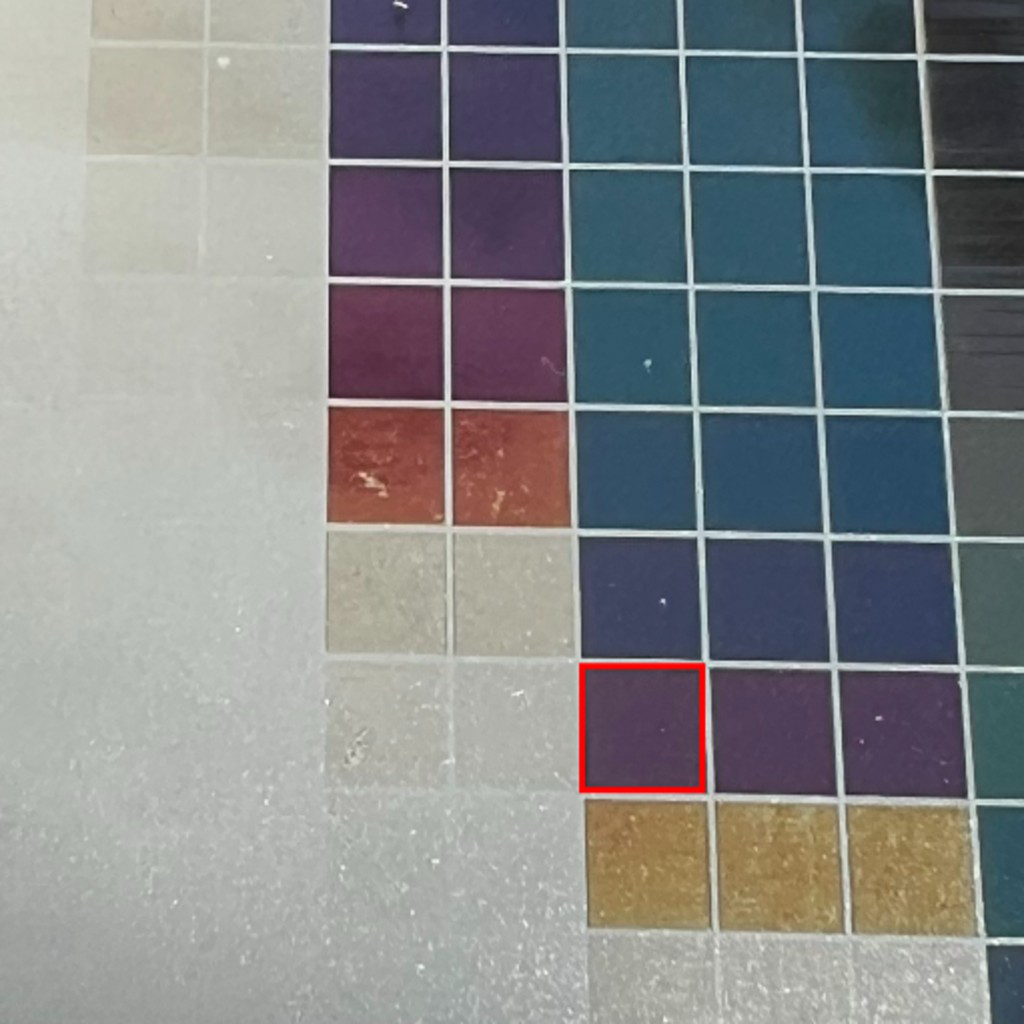

Images 2 images
Rating
- · 0 votes
5.0
Feedback 0 Feedback

Your feedback will become public after admin approval.

Similar entries 6
